Retrofit Double Disks for Zero Till Farming
Dramatically improve productivity with RYAN NT Double Disks.
Retrofit Double Disks for Zero Till Farming
Dramatically improve productivity with RYAN NT Double Disks.
Eliminate machine blockages
Front seeding boot design and scraper stop blockages to give perfect seed placement.
Protects soil structure
Good soil means good yields and profitability, crucial to long-term farming success.
Plant early & dry
Get your planting done early and on time so your crop doesn’t miss much-needed moisture.
OUR GUARANTEE:
Your crops will ‘jump’ out of the ground due to better seed placement and germination, leading to higher yields and more profit.

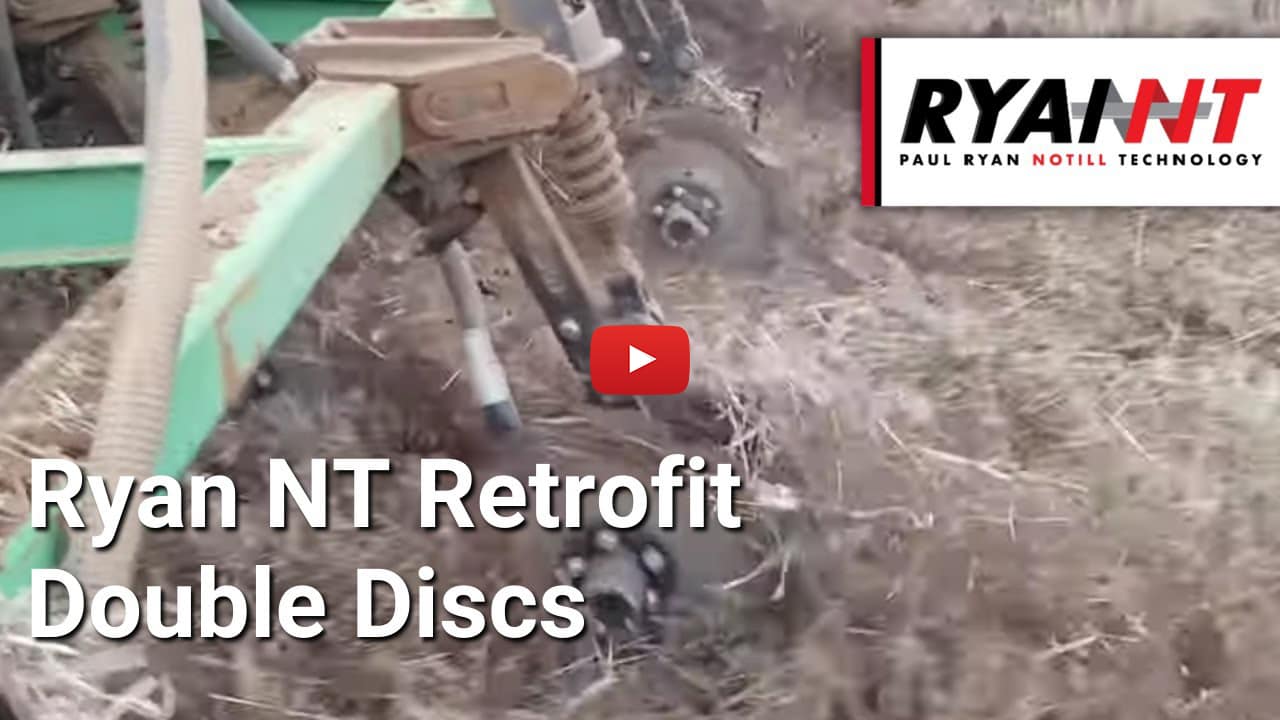

Retrofit RYAN NT Double Disks for exceptional Zero-Till Farming results
If you’re considering upgrading your hoe drill, the RYAN NT Retrofit Double Disks are the perfect option.
Our disks are an alternative to buying a new machine, saving heaps of money in the process! And the good news, RYAN NT Double Disks work on just about any machine manufactured in the last 30 years!
Discs are now an integral and preferred part of the best cropping programs. These, coupled with changing cultivation practices, no-till equipment, heavier bars, interrow sowing and reduced livestock trampling all contribute to higher productivity and profitability.
The system includes disk coulters that make light work of stubble and trash in all soil types. This means you can plant early in dry conditions without making a mess; and you won’t get blocked up in the wet.
And farmers find they can plant up to 30% faster than average and are spending a lot less on fuel.
Another big advantage with the RYAN NT Double Disk opener system is soil moisture retention, far more than using a knife system.
You get superior penetration & cutting with our double disks
Standard disk systems often put the disk coulters side by side causing them to act as a wedge, making it harder to penetrate the soil.
But the RYAN NT Double disk coulters are offset, allowing extra penetration, easier cutting and no hairpinning. This unique system works brilliantly because the lead or driving disk is on the ground, an inch forward of the plain coulter disk.
The plain and serrated coulters mean you get good tilth with enough soil throw for chemical incorporation.
The system includes a front seeding boot design, so you avoid blocking and get perfect seed or fertilizer placement directly at the bottom of the trench; also, the spring-loaded scrapers will help alleviate blocking…and the system can double chute.
Change fast from knives to Retrofit Double Disks... and back
Quickly turn your conventional knife hoe drill into a highly versatile disk planter with the revolutionary RYAN NT multipurpose disk system.
Then just as easily convert it back if conditions require it.
The RYAN NT Retrofit Double Disk system easily attaches to existing tine trip assemblies.
It’s as easy as removing the current shank from the tine trip assembly and replacing it with our matching shank…a simple process involving a couple of bolts or a pin.
The bottom line: You don’t need to buy a new machine, rather convert your existing planting tyne trip for dual purpose with the RYAN NT Double Disks.
For even better results, invest in RYAN NT Packer Wheels that work in tandem with the revolutionary Double Disks.
Retrofit RYAN NT Double Disks for exceptional Zero-Till Farming results
If you’re considering upgrading your hoe drill, the RYAN NT Retrofit Double Disks are the perfect option.
Our disks are an alternative to buying a new machine, saving heaps of money in the process! And the good news, RYAN NT Double Disks work on just about any machine manufactured in the last 30 years!
Discs are now an integral and preferred part of the best cropping programs. These, coupled with changing cultivation practices, no-till equipment, heavier bars, interrow sowing and reduced livestock trampling all contribute to higher productivity and profitability.
The system includes disk coulters that make light work of stubble and trash in all soil types. This means you can plant early in dry conditions without making a mess; and you won’t get blocked up in the wet.
And farmers find they can plant up to 30% faster than average and are spending a lot less on fuel.
Another big advantage with the RYAN NT Double Disk opener system is soil moisture retention, far more than using a knife system.
You get superior penetration & cutting with our double disks
Standard disk systems often put the disk coulters side by side causing them to act as a wedge, making it harder to penetrate the soil.
But the RYAN NT Double disk coulters are offset, allowing extra penetration, easier cutting and no hairpinning. This unique system works brilliantly because the lead or driving disk is on the ground, an inch forward of the plain coulter disk.
The plain and serrated coulters mean you get good tilth with enough soil throw for chemical incorporation.
The system includes a front seeding boot design, so you avoid blocking and get perfect seed or fertilizer placement directly at the bottom of the trench; also, the spring-loaded scrapers will help alleviate blocking…and the system can double chute.
Outside disk scraper option now available – click here to learn more
Change fast from knives to Retrofit Double Disks... and back
Quickly turn your conventional knife hoe drill into a highly versatile disk planter with the revolutionary RYAN NT multipurpose disk system.
Then just as easily convert it back if conditions require it.
The RYAN NT Retrofit Double Disk system easily attaches to existing tine trip assemblies.
It’s as easy as removing the current shank from the tine trip assembly and replacing it with our matching shank…a simple process involving a couple of bolts or a pin.
The bottom line: You don’t need to buy a new machine, rather convert your existing planting tyne trip for dual purpose with the RYAN NT Double Disks.
For even better results, invest in RYAN NT Packer Wheels that work in tandem with the revolutionary Double Disks.
More benefits to improve your productivity and profitability.
PRODUCTIVITY- You won’t need to buy a new machine, simply retrofit the current one
- Makes light work of stubble and trash in all soil types
- Plant early in dry conditions with no mess or blocking up in the wet
- Less fuel used as planting will be up to 30% faster
- Offset disk coulters mean no wedge-effect leading to greater penetration
- No more hair pinning
- Perfect seed or fertilizer placement with our no-block front seeding boot
- Spring-loaded scrapers help alleviate blocking
- The double disk system can double chute
- Easy conversion back to a conventional machine if required
- Works in tandem with our unique scrapers to clean disks & stop blocking.
- Allows soil to retain more moisture when seeding
- Better stubble management – higher straw with no blockages
- No need to burn stubble
- Plain and serrated coulters work together for improved tilth allowing enough soil through for chemical incorporation
- Overall, better protection from soil erosion
FEATURES | BENEFITS |
18″ diameter Plain & Serrated Disks | Greater cutting. Plant in harder conditioners than traditional wedge design. 20 – 30% higher speeds than knives, depending on conditions. The serrated lead disk sits 0.98″ in front of the plain disk to improve penetration. |
15 degree working angle | No hairpinning. Cut through challenging crop residue. |
Double Bevel Disks | For ease of penetration Plates are recessed to handle rough conditions |
Recessed design | Adds reinforcement to handle rough conditions. |
1.18″ Offset axles | For ease of penetration and cutting |
Heavy duty axle system | Handles harsh conditions. |
Moisture Retention | Greater yields and your crops will hang on that little bit longer in a drier year. |
Reduced draft | Up to 50% less fuel required. |
Seeding Boot Bracket | Up to 50% more productivity. |
Front seed boot | Up to 50% increased productivity due to reduced blockages. Excellent seed placement combined with v-shaped cutting into the furrow. |
High-Quality Tapered Bearings Hub cutaway | Reduced downtime for maintenance. |
Spring Loaded Tungsten Scrapers | Longer wearing. Noticeably reduced mud build-up. Avoid blocking up. Outside disk scraper option available. |
Adjustment Spacers | Adjust the cutting edge between the two disks when wear happens. |
Large range of adapters and leg shanks | Different designs to retrofit to different tine assemblies. |
Disc OD: | 18” |
Disc Thickness: | 0.16″ |
Material: | Hardened cast steel |
Disk Weight: | 8.82lbs |
Single chute or double chute. |
Rear small seeds boot. |
Double plain disk combination to reduce throw when pasture seeding. |
Standard Combination for most broadacre planting applications. |
Various disk shank models. |

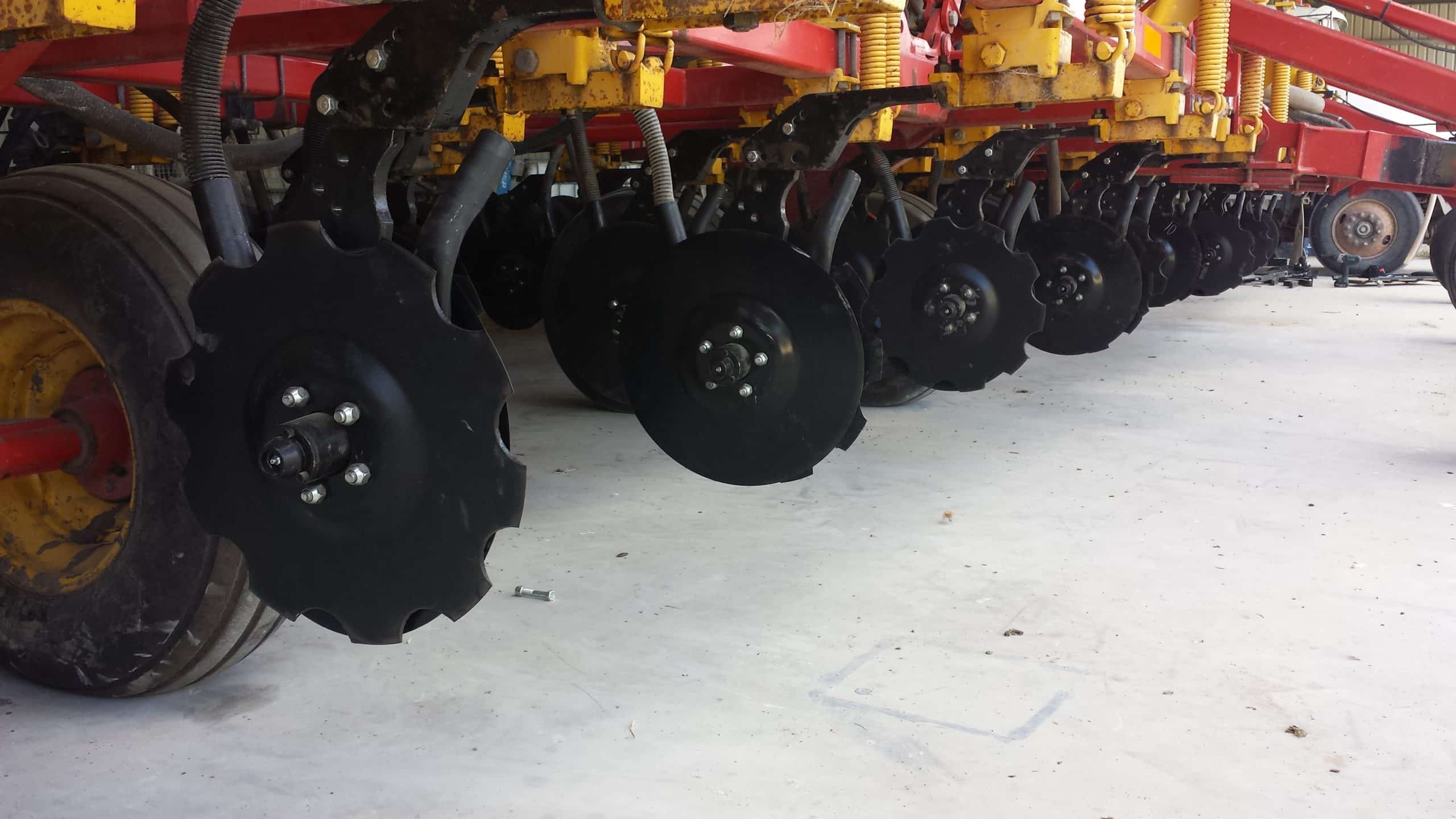

Models for Bourgault, Conservapac, Equalizer, Flexicoil, Seed Hawk, John Deere and Morris.
Seeding Row Setup Examples and Underframe Clearance (click to zoom)

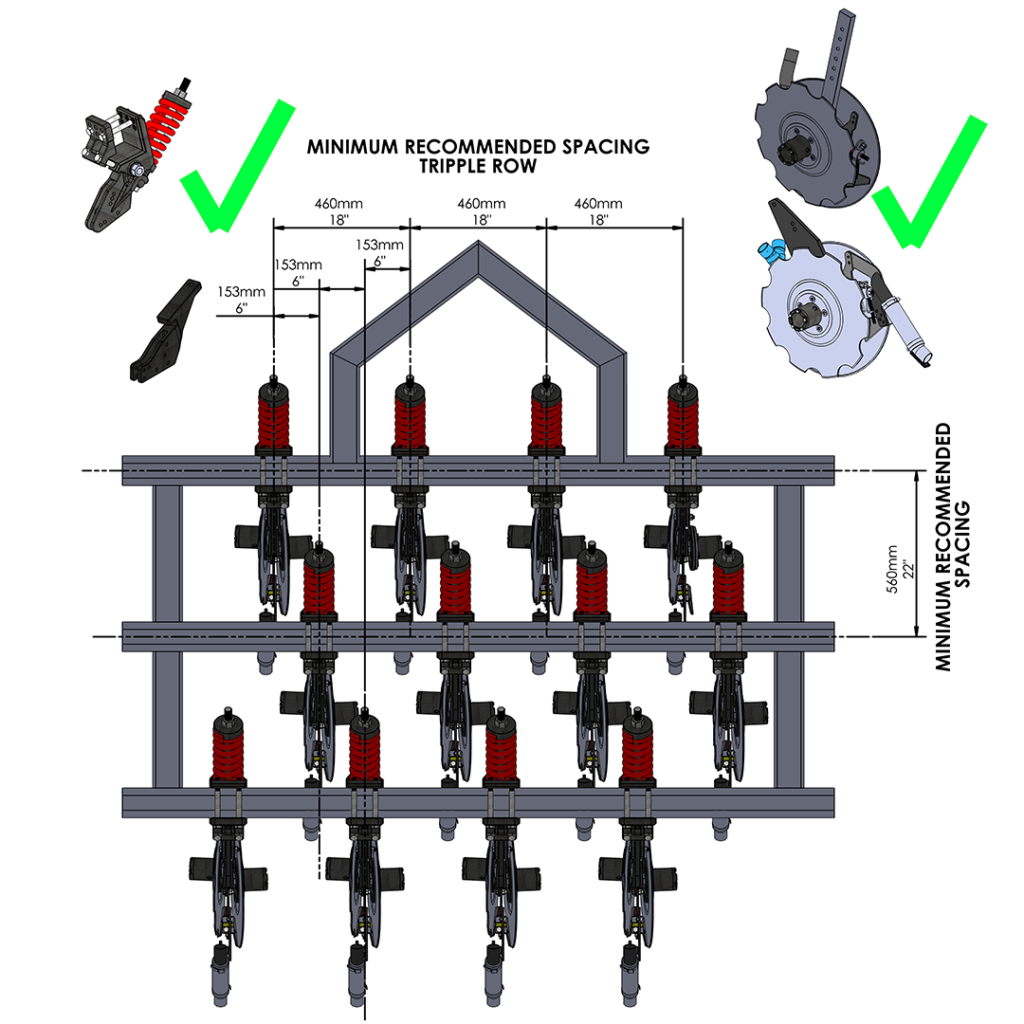

Triple Row

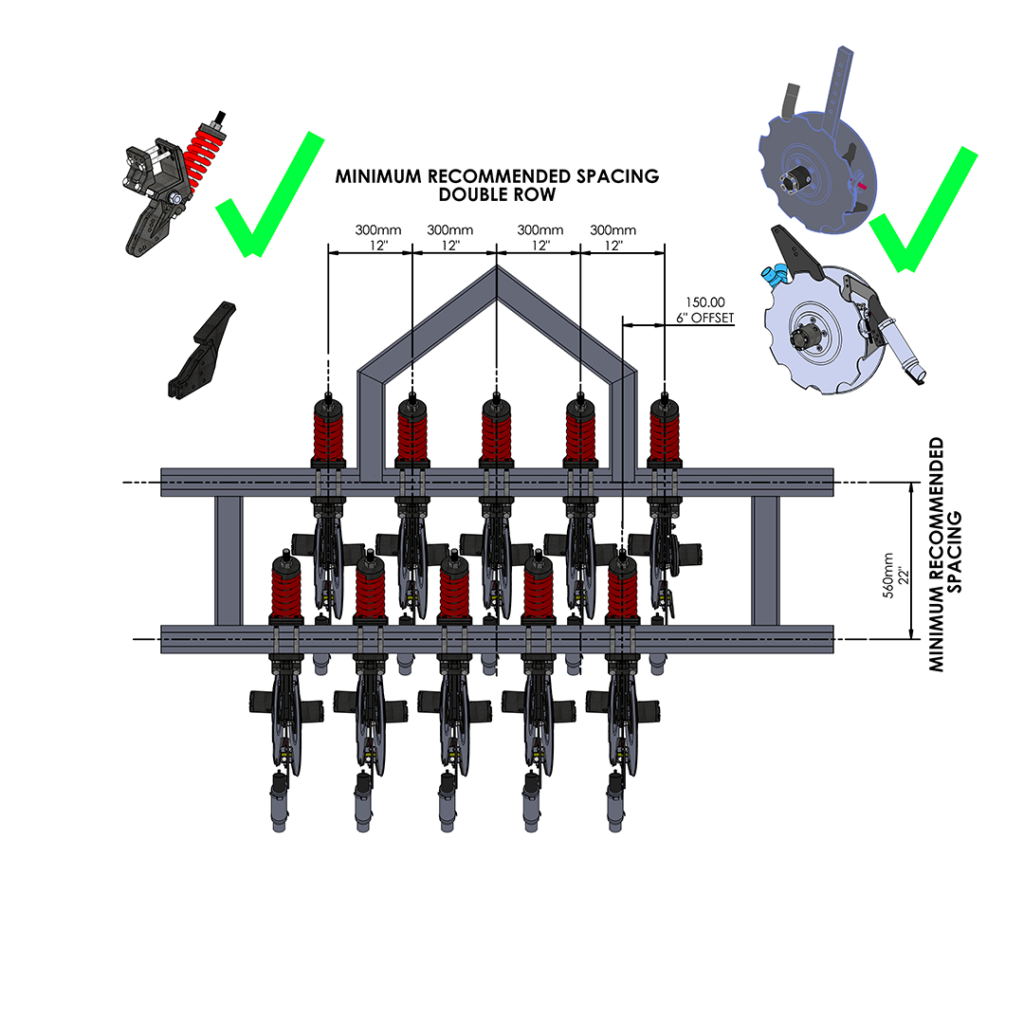

Double Row

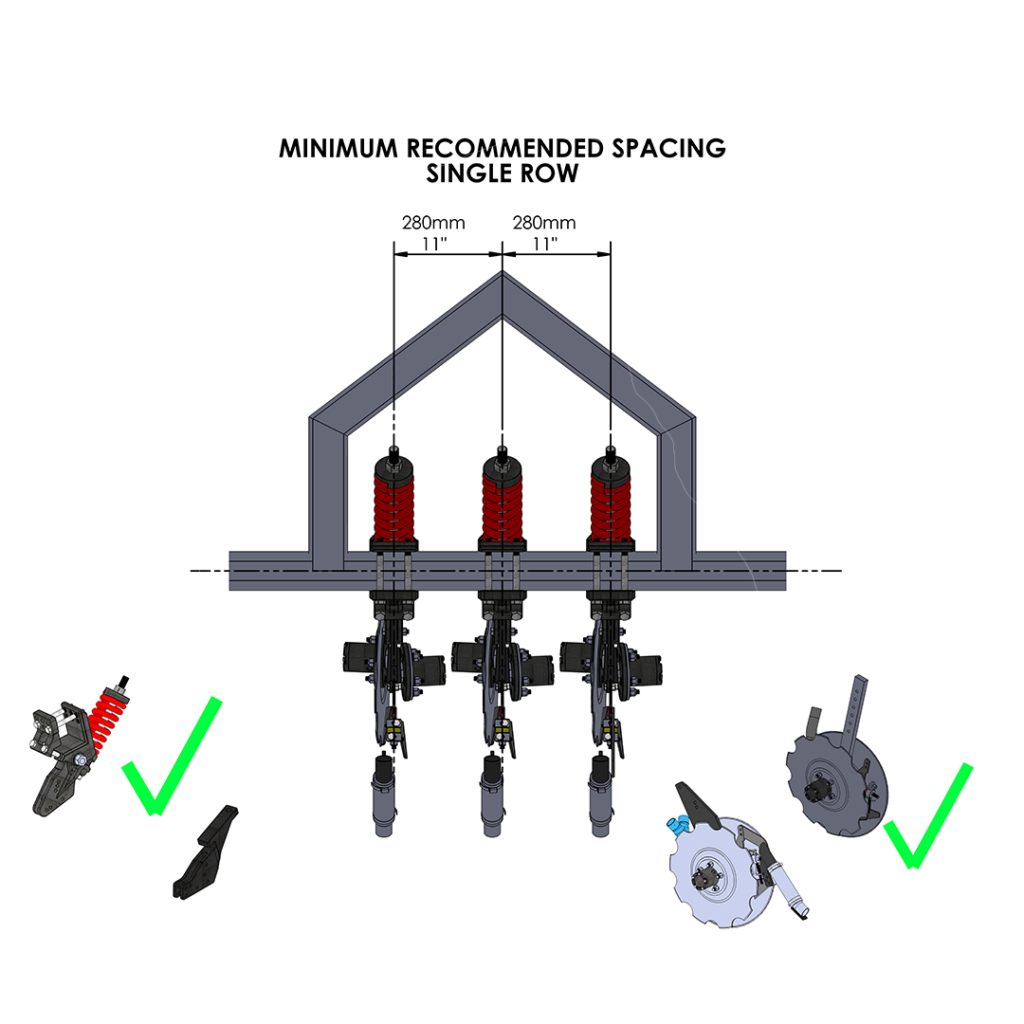

Single Row

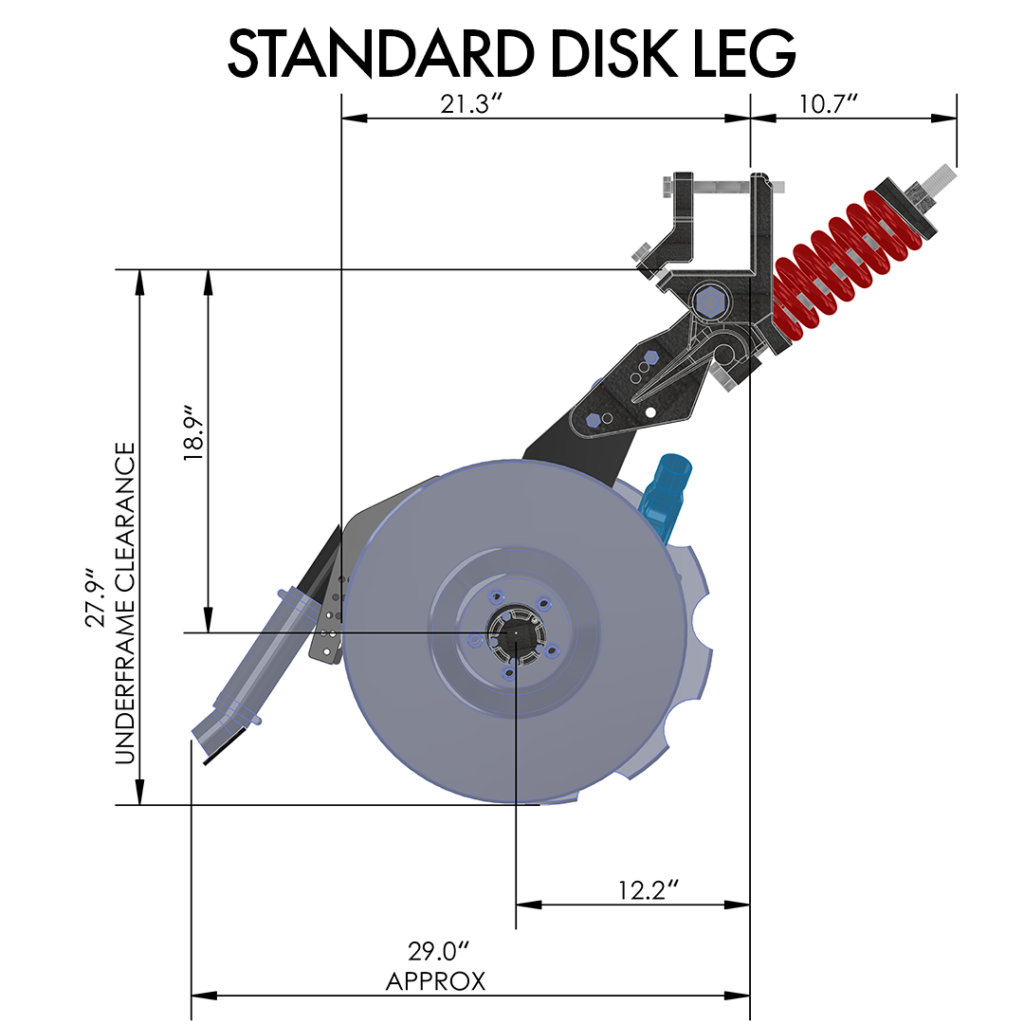

Standard Ryan Disk
Compact Ryan Disk

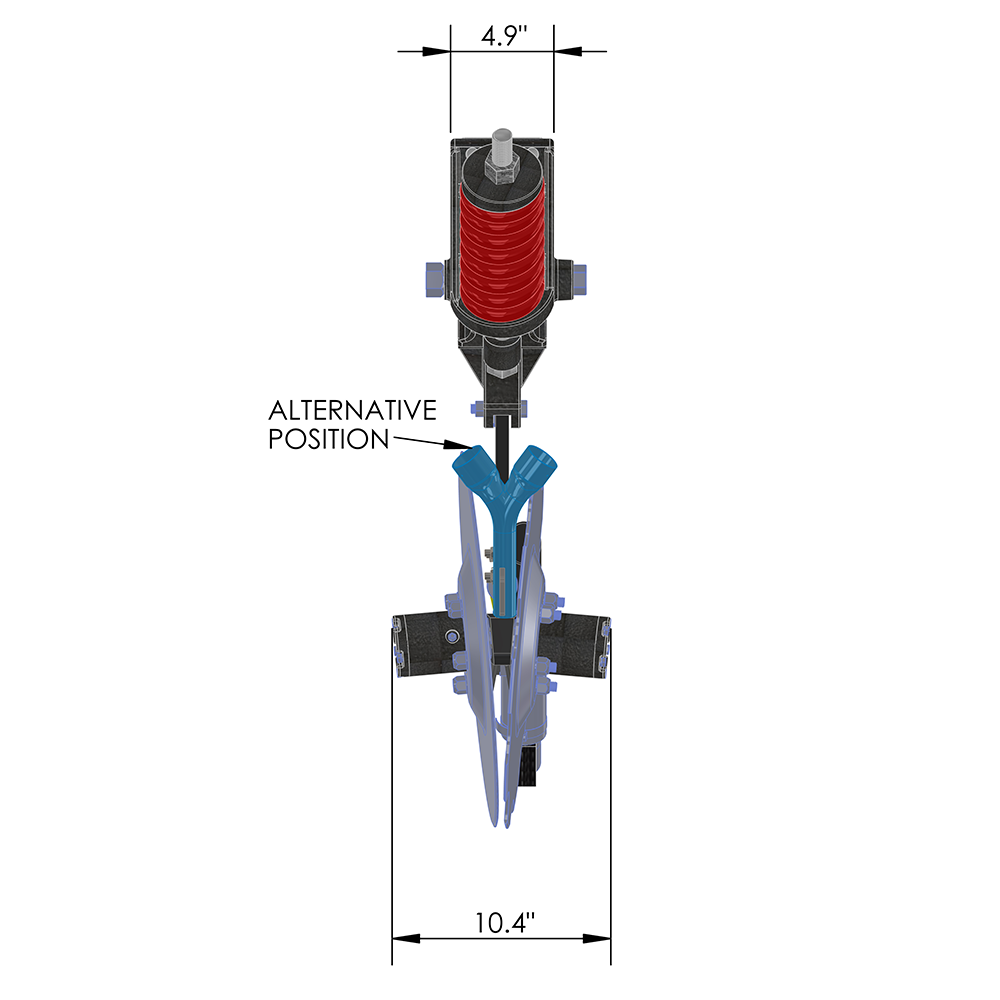

Front View
What our growers have to say...
“They just cut straight through and sowed straight in. There was no blockages or anything like we had found in the past with our knife point system. The germination was very, very good”
– Ash Rowe of Ardrossan (SA)
Commonly asked questions from our growers
Yes, they are greaseable Timkin tapered bearing. There are two bearings to each hub with a rubber seal on the inside. The bearings have the grease nipple positioned between them.
Disk hubs come pre-greased. We recommend giving them their first service in the first 100-200 hours or after the first rain after the first 100 hours. It’s as simple as giving them a quick nip up (and making sure not to over-grease).
Then once a year after that.
On average, you use 50% less horsepower than you would with knives on a hoe drill. However, many factors influence this requirement, such as soil type, machine configuration, application and what you are trying to achieve.
Deep banding tubes are an option. We have achieved separation with them. It all comes down to soil types and speed.
Very minimal. We recommend that you check disc bearing in the first 100 hours and then grease every 100 hours from thereon.
Yes, they can. It comes down to soil types, speed, and conditions.
The lead disk at the front is always the notched disk.
We regularly plant into hard pastures. The results depend on soil types, speed and conditions.
We recommended starting with 3 spaces on each side. We recommend aiming for a 0.12″-0.24″ gap at the leading edge of the disks for loam to heavy soils and no more than 0.04″ for sandy soils. The loam to heavy soils will close the gap between the disk coulters.
Yes, you can. We also stock adapters to suit other tyne models.
Yes, they can. It depends on underframe clearance.
